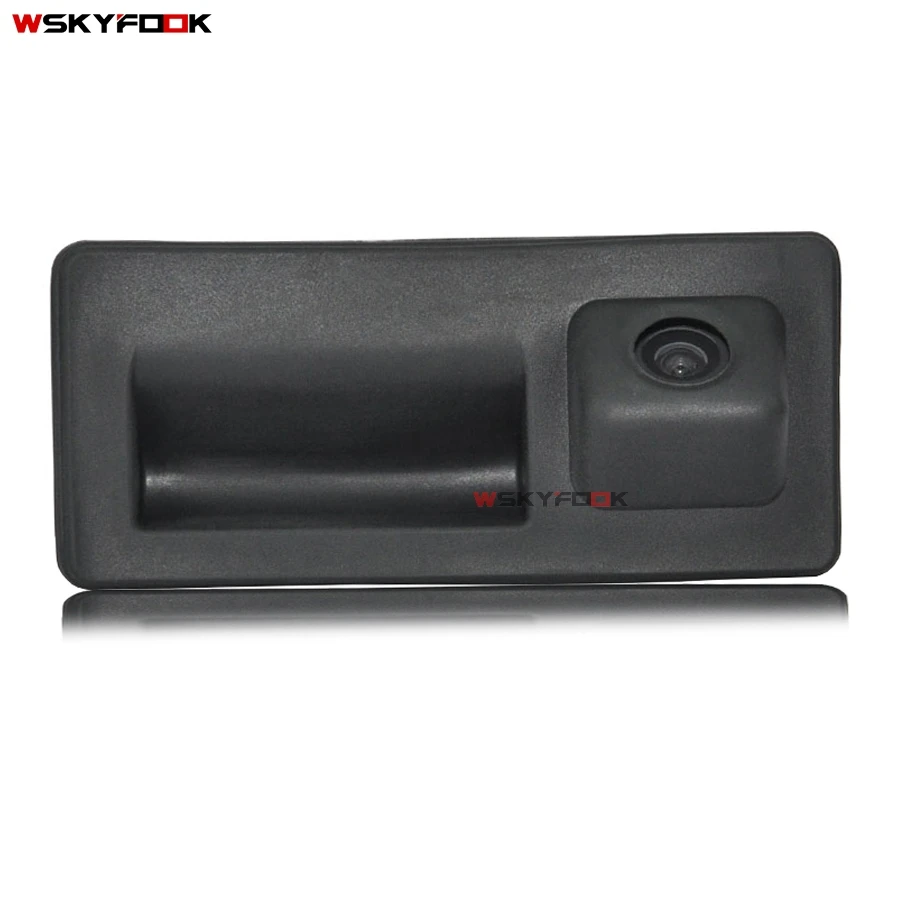

wire wireless car rear view camera for Audi A4 A4L A6 A6L A7 A5 S5 S6 S7 Q5/Q3/A8L/RS5 RS6 Posche Cayenne trunk handle camera
|45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.|
Guarantees: On-time Delivery 60 days
TOP sale product
7colors 360degree universal camera
46% off sales
|Car Video Parking Sensor Reverse Backup Radar Assist Auto parking Digital Display radar For DVD TFT15% off sales||
4cameras control box with TF card four video record four way DVR
25% off sales
(Kindly Note: due to our company’s products are constantly updating, when the chip upgrade, the guide line may be a little different ,we don’t special notice it ,we will update quickly our description same as the upgraded product . of course ,buyer can contact with seller and get the new message before you buy.)
Special Car Rear View reverse backup Camera for
for Porsche Cayenne 2011 2012 2013 for Audi 2013 A4 /2012 2013 A4L for 2012 2013 A5 /2013 A6 /2012 A6L for 2013 A7/ A8L S5 /2013 S6 S7/2012 2013 RS5 RS6 for 2012 2013 Q3 /2010 2012 2013 Q5 In different countries, car models can be differentiated Please check your car original reserved camera position size before you buy ,thanks. Maybe a few of the country’s camera are different.
Note: for SonyCCD camera is the best camera(in dark night ,The image to display almost no noise,and the rear shown effect is very beautiful)
This camera send without guiding line as default,when you need the camera with guiding line please cut off the small white line*
if you cut the small line when camera working ,you have to do follow below guiding
The cable as below (6m AV cable as default)
(it is default)
If you need ,you have to leave message to us ,only can be send from China ,Can’t select for Russian and US shipment)
Kindly note: (If you want to buy wireless camera ,
please first you put the two product links into “add to car” then to buy
GUide: select your product
wireless camera only include :camera ,wireless reciever and Transmitter,manual ,not include wire.
Common problems and solutions(Kindly answer your questions:)
(1) Can this camera install on rearview mirror recorder?
NO, it can’t ,Usually it can connect TFT monitor, mirror monitor,RCA DVD ,but can’t support any Driver recorder.
(2) Can the camera fit my car ?
In different countries, car models can be differentiated Please check your car license plate light cover or trunk hand size before you buy ,thanks.Maybe a few of the country’s camera are different.
(3)Do the camera have reference line?
there is reference line as default for rear camera
(4)about the video line, it is AV or AVIN(2.5mm) for portable?
AV is default,if you need AVIN ,please leave message follow your order,(only support Shipment from China )
(5).Why the image occurred jitter, splash screen, interference,unstable, Black and white color when you are reversing?
1) The image becomes black and white color just because you buy a wrong TV system. This camera built in NTSC system as default,
if your monitor is PAL system, it will be showed jitter , Black and white color.
a. Please set up the GPS TV system as automatic firstly when using, then see whether it still can set the system.
Because there are many monitor with 2 system in market, it can set. But some old-type GPS can’t set. So please choose the right system to fit the camera.
b. Please must check the right cable connection installation.
c. If above solutions still can’t deal, please ask your local professional car staff for help.
2) The image occurred jitter, splash screen, unstable just because the
voltage is lower than we suggest.
Different place and using-situation will occurred some of the car output voltage is different. Car reversing is not powered by DC,
it will add a Pulse signal to disturb , so it will unstable .So we suggest you need check the voltage whether as 12V,or please add a delay to use.
(6)our car have video and power cable,Can you use it when I buy this camera?
Yes, it can, it support RCA plug. But we suggest you don’t use youself cable, because the line may be aging and defined different .
7.How to install?
a. For universal camera, it installs through 2 screws and backrest or .it can fix near the location of license plate light.
b. For dedicated camera, it installs in license plate light directly. We suggest you install the camera in professional car modification and beauty shop
All chips description below <1>below CCD camera’s image shown CCD camera is high clear, better quality than the Colorful CMOS andCMD
NOTES: The Night vision is just in case of reversing lamp, the Picture comes from real recording Video
How to install : Specification:CCD chips description Specification:
|Image Sensors||1/3″Color CCD (default to be send)||
1/3″for CCDSony color
|TV System||NTSC/PAL(NTSC as default,If you want Pal system, please note it,and only send it from China)|
|Sensing Area (mm)||3.3 x 2.6||3.3 x 2.6|
|Resolution (TV Lines)||520||600|
|Minimum illumination||0.1 Lux / F1.2||<0.1 Lux / F1.2|
|with lED’s 0.01Lux/F1.2|
|Horizontal Sync.Frequency||15.625 KHZ||15.625 KHZ|
|Vertical Sync.Frequency||50 HZ||50 HZ|
|Video Output||1.0Vp-P75 Ohm||1.0Vp-P75 Ohm|
|S/N ratio||Better than 48dB||Better than 48dB|
|Lens Angle||wide angle|
|Current Consumption (mA)||85~115|
|Power Supply (DC V)||12V||12V|
|Operating Temperature (Deg.C)||-20~+75(RH95% Max.)||-20~+75(RH95% Max.)|
|Storage Temperatur(Deg.C)||-40~+85(RH95% Max.)||-40~+85(RH95% Max.)|
we send camera according to your option
(when you need AVIN cable,please leave message to us)
Product quality certification
Only buy from Wskyfook Official Store , will enjoy below after-sales policy from us:
1 Year Free Warranty
You will enjoy one year free warranty since the order received. If need return for repairment, about the shipping cost is half in half , Wskyfook will afford the shipping cost from China to your country.
30 Days Free Replacement
If the product problem, you will have 30 days to apply for free replacement since the order received. We will afford the shipping cost for your return package.
